Pass Through Trays cleaning machine CBP-H

Code: C0900P Categories: ,

Baking trays cleaning machine, dry process using hard wearing brushes. For most common tray sizes, up to 460 x 762mm (30″x18″). Can be used even with trays with 4 sides up (up to 1″ height).

Ideal for large and medium food manufacturers and bakeries. Single operator required.

  • Get a Quote
  • Get a Finance Quote
  • From £340 ex. VAT Per Month

We have professional bakers on hand for equipment advice at 0800 270 7777

  • Free Delivery from £60

    Fast Delivery Service

    Order before 1pm for next day delivery.

  • Satisfaction Guarantee

    Satisfaction Guarantee

    We strive for a 5* service that can’t be beaten.

Description

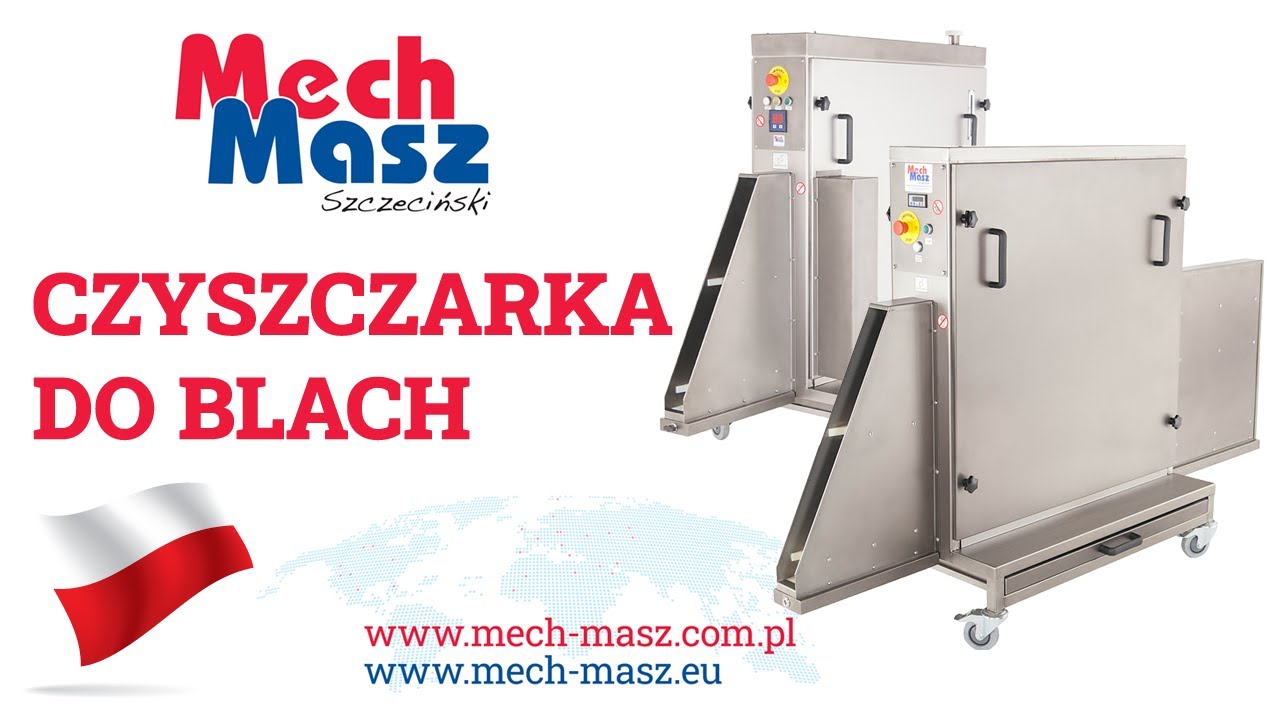

The professional pass thought tray cleaning machine manufactured by MECH-MASZ is ideally adapted for operation with the most common tray sizes used in the industry including 400 x 600 mm, 460 x 762 mm, 580 x 780 mm, 600 x 800 mm, 600 x 1000 mm, and all intermediate versions. Purchase of the cleaner and its regular use guarantee that your trays will be appropriately kept clean and in good condition. The device may work with plain and perforated trays made of different materials such as stainless steel, aluminium, and black steel. you can program the  number of cycles (passages of a tray between the brushes), max 20, it is possible to set the operating mode of the machine for specific trays and their degree of soiling. The machine can be operated by one person,  and a cleaned tray always returns to the operator.

The oiling system coats baking trays with a thin layer of oil, the quantity of oil is fully adjustable and adapted to your needs. the oil is sprayed onto the baking trays as they leave the machine.

The versatility of the tray cleaner is also reflected by the fact that it is possible to use even 4-rim trays with a single rim height of up to 24 mm.  Impurities accumulate underneath the cleaner on a retractable easy-empty shelf. The device is of a fully mobile castor design. It can be effortlessly moved to the designated place when the work is done. The entire structure undergoes shot peening, therefore its surfaces are as smooth and hygienic as possible.

Easy access to the cleaning brushes substantially facilitates care and possible supervision of the same. As many as 16 cleaning brushes, 8 per row, ensure desirable working output. Compared with other competitive solutions, we use reinforced, additionally seized brushes that extend their lifetime and guarantee the ‘bristles’ are firmly held in place.

The front and rear guides are removable which provides a minimum amount of space required to store the machine if it is not used for a longer period.

TECHNICAL DETAILS

Power: 0,75kw

Power supply: 400V/50Hx

Outside Dimensions (mm): 2234 x 630 x 1372

Weight: 210kg

Compressed air required. Pneumatic fitting: NW 7.2 male quick coupling (max pressure 0.8MPa)
